Deadman Series
Developed specifically for industrial applications requiring positive operator-to-machine contact.

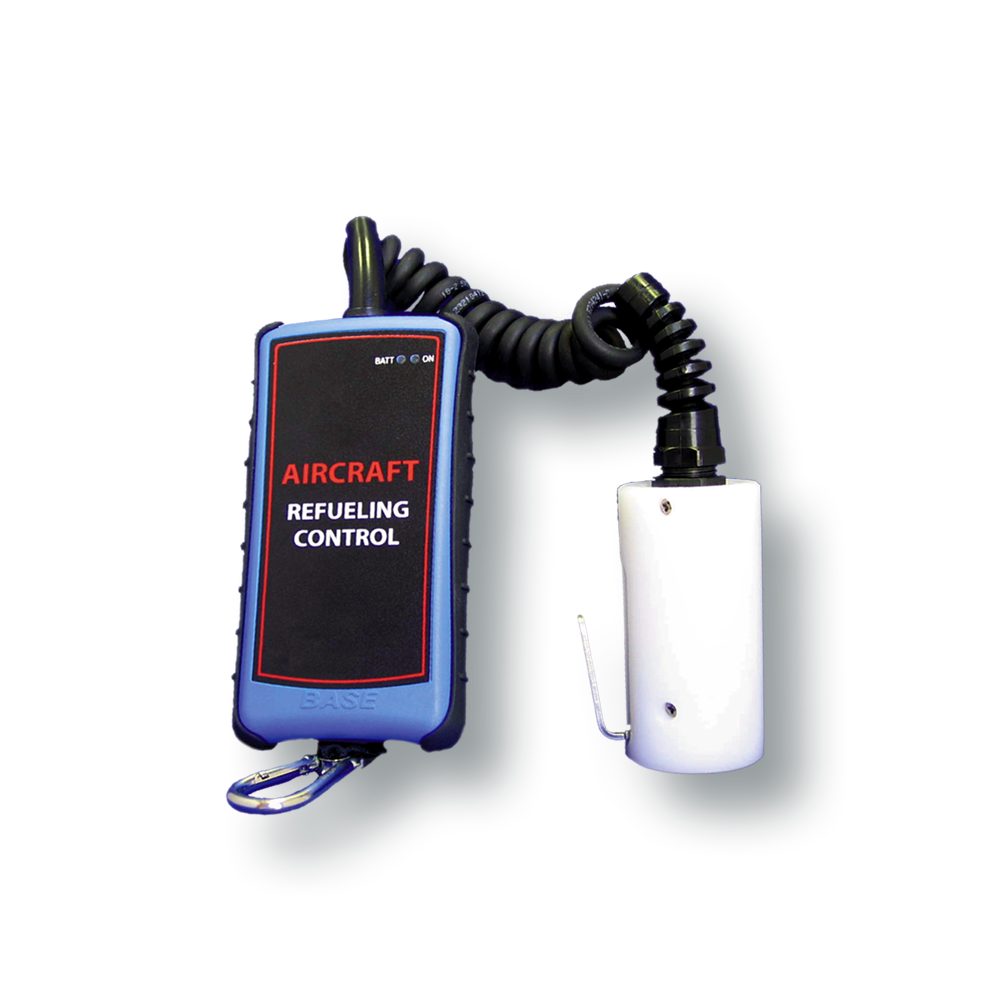

A wireless trigger-switch is used to send RF command signal to the pump. Operator is unencumbered by cable and wires normally used in ‘deadman’ fueling operation. The system incorporates a secure frequency hopping, spread-spectrum radio link that virtually immune to outside electrical or RF interference.
Developed specifically for industrial applications requiring positive operator-to-machine contact.
A wireless trigger-switch is used to send RF command signal to the pump. Operator is unencumbered by cable and wires normally used in ‘deadman’ fueling operation. The system incorporates a secure frequency hopping, spread-spectrum radio link that virtually immune to outside electrical or RF interference.
Developed specifically for industrial applications requiring positive operator-to-machine contact.
A wireless trigger-switch is used to send RF command signal to the pump. Operator is unencumbered by cable and wires normally used in ‘deadman’ fueling operation. The system incorporates a secure frequency hopping, spread-spectrum radio link that virtually immune to outside electrical or RF interference.
Features
Operations fail-safe (shutdown) with any loss of signal from the transmitter.
Rechargeable transmitter delivers 30 hours of continuous use between charges (12/24VDC charger supplied).
‘Safety Timer’ software available to limit switch closure duration prior to automatic shut-off. This feature requires periodic trigger pulse by operator to main receiver ‘on’ condition.
Up to 4 other command functions available per customer requirements
Modular quick-connect components allow for easy installation and field service
Pre-wired solenoids are available for Pneumatic, Hydraulic, or Hose Reel control interface.
Refer to page 16 for additional control button options.
Specifications
Handheld Transmitter Specifications
| Frequency of Operation | 902-928MHz FHSS (433.92, 869.7 and 2.4 GHz available) |
|---|---|
| Transmitter Power | 100mW |
| Method of Transmission | 56 bit DES encryption key |
| Construction | Rugged weather-proof polymer enclosure |
| Antenna | Internal ‘on card’ PCB mount (no visible antennas to damage) |
| Normal Range | 500ft. (higher power available) |
| Temperature Specification | Minus 20F to 185F |
| Battery Life | 30 hours of continuous use with audible low battery warning/flashing indicator |
| Battery Type | Rechargeable lithium ion included with 12/24V DC charger |
| Radio Approval | KQLAC4490-100 (non-licensed) |
| ROHS Lead-Free Compliant | Yes |
Reciever Specifications
| Power Supply | 12/24V DC (Optional 120V AC systems available) |
|---|---|
| Construction | Rugged weather-proof polymer enclosure |
| Antenna | Internally protected and encased (optional external antenna/coax available) |
| Current Load | Up to 4 Amps per channel or 10 Amps total |
| Wiring Connections | Pre-wired to meet OEM requirements, quick connect fittings supplied |
| Programming Modes | Up to 12 programmable channels including: Latched, Momentary, Safety Latched, and *SAFETY TIMER programming modes (custom programming available) |
| Serial Connection | Optional CANbus interface available |
| ROHS Lead-Free Compliant | Yes |
