Driver Authorization System
Depending on the customer’s application, the Driver Authorization System (DAS) protects vehicles and machinery from unauthorized engine start or movement. Any attempt to tamper with, disconnect, or damage the system results in the shutdown activation.
Depending on the customer’s application, the Driver Authorization System (DAS) protects vehicles and machinery from unauthorized engine start or movement. Any attempt to tamper with, disconnect, or damage the system results in the shutdown activation.
Depending on the customer’s application, the Driver Authorization System (DAS) protects vehicles and machinery from unauthorized engine start or movement. Any attempt to tamper with, disconnect, or damage the system results in the shutdown activation.
The DAS system is disarmed by entering a three to nine digit ID code into the keypad. This code is selected by the truck owner and is programmed into the unit using a ‘master code’ assigned to the truck owner. Entry of a master code is required to change the driver’s authorization code. A typical organization will provide these master codes to key management as required. Each level of master code erases the ID code directly below it and sets the device into a ‘learning state’ where it waits for a new code to be entered.
If an incorrect ID code is entered more than five times, the system will automatically ‘lock out’ for ten minutes before allowing additional code entry. LED indicators show red for system armed, green for system disarmed, flashing red for auto shutdown, flashing green for changing ID codes, and alternating green and red flashing for system lockout due to multiple incorrect code entries.
DAS1000 Systems available to:
Prevent truck engine start
Allow the engine to run, but prevent vehicle movement
Automatically armed by truck parking brake application
Also available for tractor-trailers with dual parking brakes
System Includes:

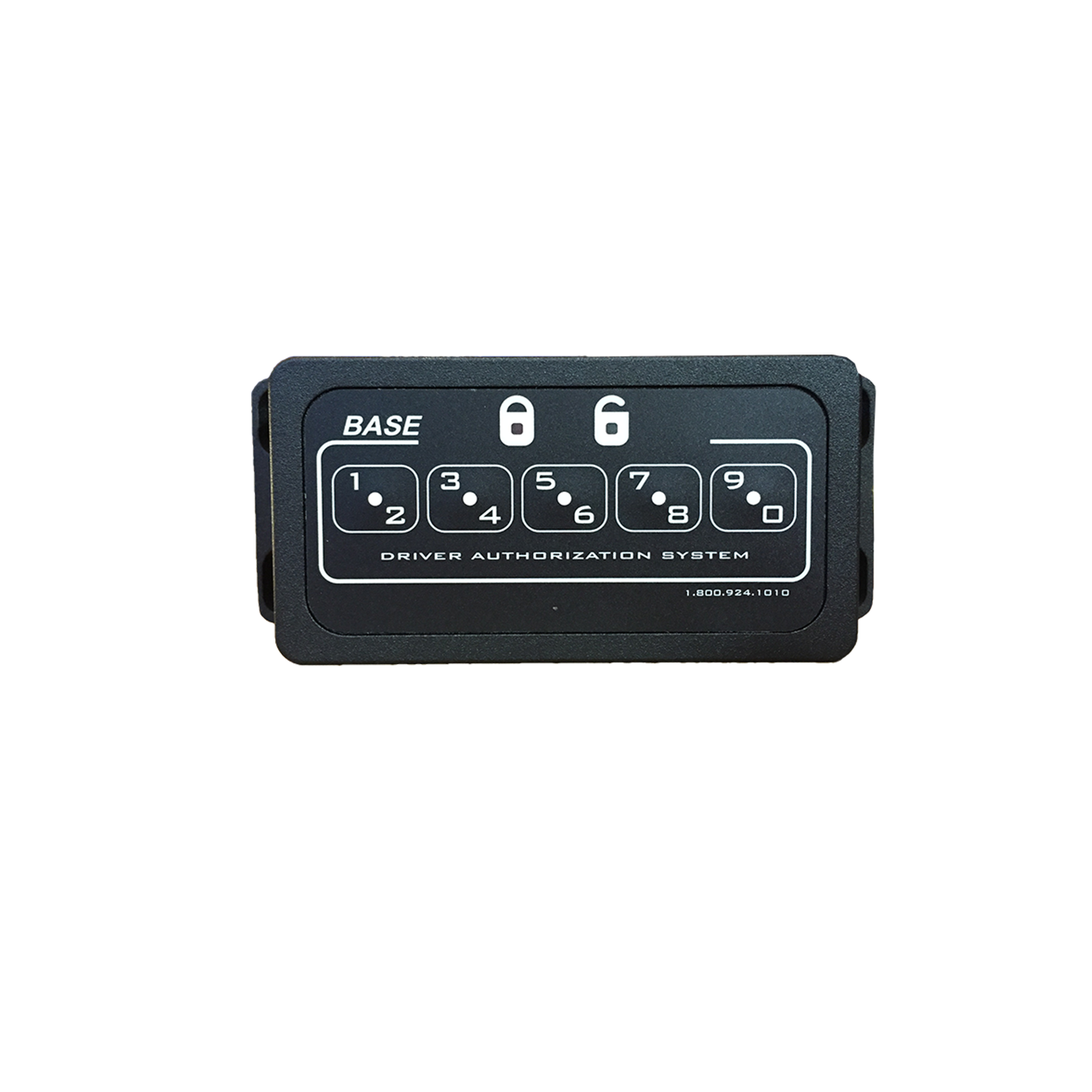

Keypad Unit with hidden enclosure screws
Sealed parking brake low pressure switch with DOT quick connect T fitting
Sealed engine kill relay
Installation guide
Components are pre-wired, quick connect electrical, air line fittings supplied
Specifications
DAS1000 Technical Specifications
| System Type | Low-powered microcomputer controlled ignition lock-out system |
|---|---|
| Construction | Sealed cast aluminum enclosure, stainless mounting hardware |
| Installation | 30 minute ‘Plug and Play’ components |
| Power Connections | 12V and Ground |
| System Activation | Air switch park brake interlock |
| Lock-out Method | Truck engine kill with park brake release |
| Keypad Location | Compact unit can be installed anywhere for convenient day to day use |
| Operator Set-Up | Programmable personal authorization code (3-9 digits) |
| Indicator Lights | RED armed indicator and Green disarmed indicator |
Download the full product brochure here
